Bolt On N-Type Thermocouple AWG20 with High Temperature Fiberglass Insulation
(No reviews yet)
Write a Review
- Weight:
- 0.10 LBS
- Shipping:
- Calculated at Checkout
Description

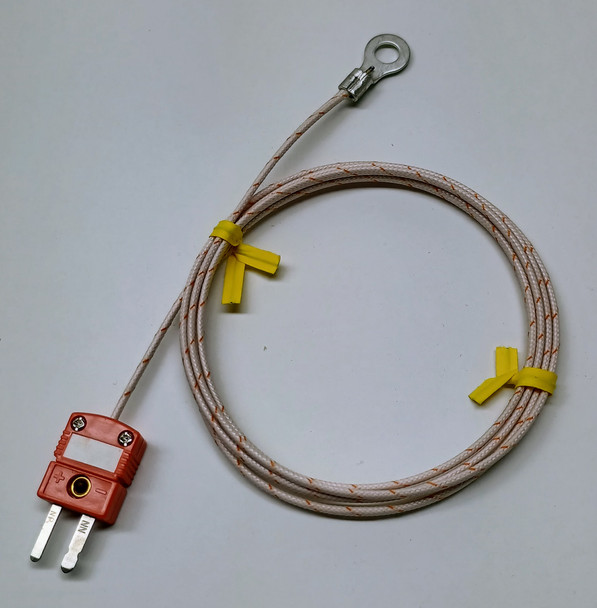

This is a 30 ft long Type N thermocouple with high temperature fiberglass insulation. The AWG20 wire is secured with a 1/4 inch steel ring terminal at the sensor tip, the sensor is not grounded. This Type N thermocouple comes with a premium quality miniature plug, male. The Type N thermocouple is made to standard accuracy (class II).
Thermocouple: Type N
Conductor thickness: AWG20 or 0.8 mm
Insulation: High Temperature Glass Fiber, good to 700 C
Sensor: not grounded, but you need to make sure the tip does not touch ground when mounted
Accuracy: Standard or Class II
