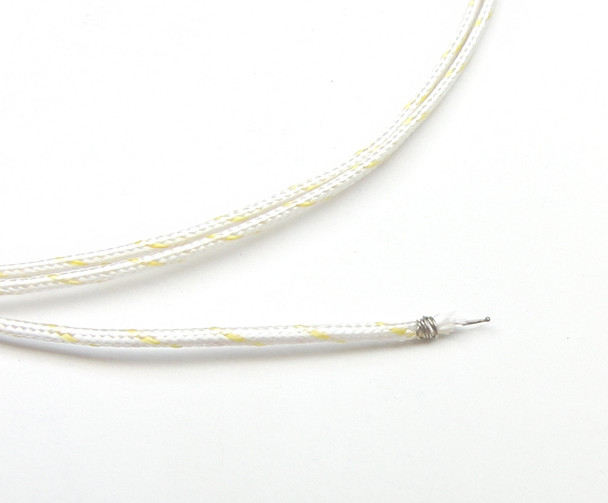

Thin High Temperature K-type Thermocouple PK-1000-AWG30 in 36 inch

This is a thin version of our popular high temperature type K thermocouple PK-1000

The new K-type thermocouple PK-1000-AWG30 is made with a thinner AWG30 wire and the same high temperature ceramic insulation. It is much more flexible than the PK1000 and has a small heat load, therefore it frequently is used in small kilns, to measure flame temperatures or in high temperature furnaces in the semiconductor industry. It can be used to measure temperatures up to 1000 degree C or 1832 degree F. The only limitation is that the durability, since the wire is thinner it will not last as long.

This version comes with stripped ends, no connector plug

Specification:

Type K thermocouple Chromel/Alumel

Metal wire thickness 0.25 mm or 30 AWG

Outer diameter: about 1.2 mm

ANSI color coded braid: red= (-), yellow = (+)   , the red wire is magnetic, the yellow wire is not magnetic

ANSI Standard Limits of Error

Fibers at the tip are secured with wire

Stripped ends, no connector plug
